java-design-patterns/specification

layout, title, folder, permalink, categories, tags

layout	title	folder	permalink	categories	tags
pattern	Specification	specification	/patterns/specification/	Behavioral	Java Difficulty-Beginner Searching

Also known as

Filter, Criteria

Intent

Specification pattern separates the statement of how to match a candidate, from the candidate object that it is matched against. As well as its usefulness in selection, it is also valuable for validation and for building to order.

Applicability

Use the Specification pattern when

• You need to select a subset of objects based on some criteria, and to refresh the selection at various times.
• You need to check that only suitable objects are used for a certain role (validation).

Explanation

Real world example

There is a pool of different creatures and we often need to select some subset of them. We can write our search specification such as "creatures that can fly" and give it to the party that will perform the filtering.

In Plain Words

Specification pattern allows us to separate the search criteria from the object that performs the search.

Wikipedia says

In computer programming, the specification pattern is a particular software design pattern, whereby business rules can be recombined by chaining the business rules together using boolean logic.

Programmatic Example

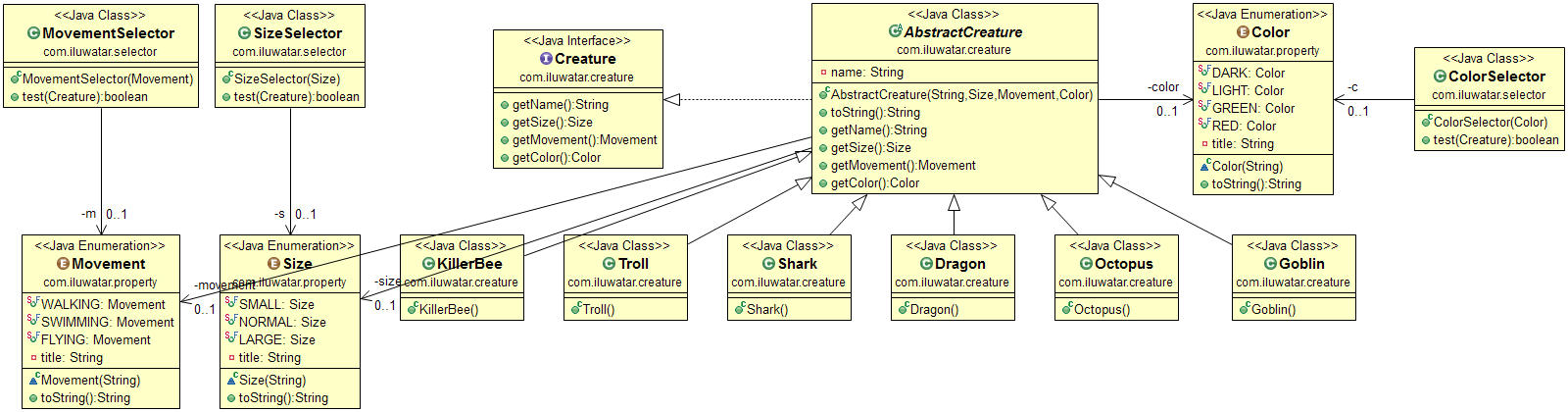

If we look at our creature pool example from above, we have a set of creatures with certain properties.

public interface Creature {
  String getName();
  Size getSize();
  Movement getMovement();
  Color getColor();
}

And dragon implementation looks like this.

public class Dragon extends AbstractCreature {

  public Dragon() {
    super("Dragon", Size.LARGE, Movement.FLYING, Color.RED);
  }
}

Now that we want to select some subset of them, we use selectors. To select creatures that fly, we should use MovementSelector.

public class MovementSelector implements Predicate<Creature> {

  private final Movement movement;

  public MovementSelector(Movement m) {
    this.movement = m;
  }

  @Override
  public boolean test(Creature t) {
    return t.getMovement().equals(movement);
  }
}

With these building blocks in place, we can perform a search for red and flying creatures like this.

    List<Creature> redAndFlyingCreatures = creatures.stream()
            .filter(new ColorSelector(Color.RED).and(new MovementSelector(Movement.FLYING))).collect(Collectors.toList());

Related patterns

• Repository

Credits

• Martin Fowler - Specifications
