Intent
Handle costly remote service calls in such a way that the failure of a single service/component cannot bring the whole application down, and we can reconnect to the service as soon as possible.
Explanation
Real world example
Imagine a web application that has both local files/images and remote database entries to serve. The database might not be responding due to a variety of reasons, so if the application keeps trying to read from the database using multiple threads/processes, soon all of them will hang causing our entire web application will crash. We should be able to detect this situation and show the user an appropriate message so that he/she can explore other parts of the app unaffected by the database failure.
In plain words
Circuit Breaker allows graceful handling of failed remote services. It's especially useful when all parts of our application are highly decoupled from each other, and failure of one component doesn't mean the other parts will stop working.
Wikipedia says
Circuit breaker is a design pattern used in modern software development. It is used to detect failures and encapsulates the logic of preventing a failure from constantly recurring, during maintenance, temporary external system failure or unexpected system difficulties.
Programmatic Example
So, how does this all come together? With the above example in mind we will imitate the functionality in a simple example. A monitoring service mimics the web app and makes both local and remote calls.

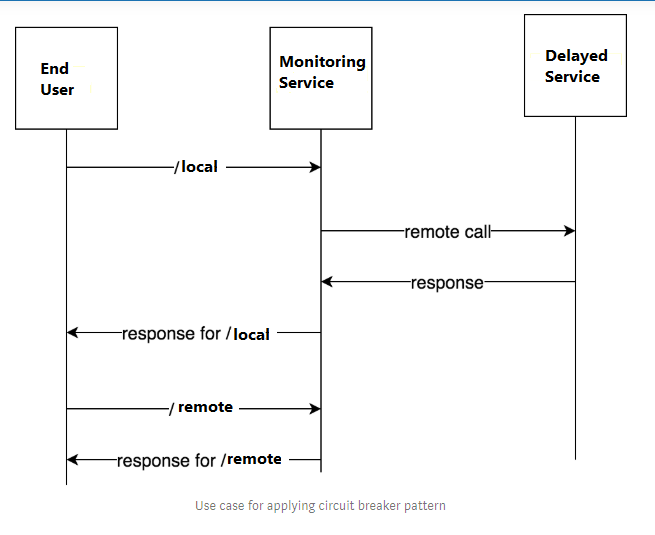

The service architecture is as follows:
In terms of code, the end user application is:
public class App {
private static final Logger LOGGER = LoggerFactory.getLogger(App.class);
/**
* Program entry point.
*
* @param args command line args
*/
public static void main(String[] args) {
var serverStartTime = System.nanoTime();
var delayedService = new DelayedRemoteService(serverStartTime, 5);
//Set the circuit Breaker parameters
var delayedServiceCircuitBreaker = new DefaultCircuitBreaker(delayedService, 3000, 2,
2000 * 1000 * 1000);
var quickService = new QuickRemoteService();
//Set the circuit Breaker parameters
var quickServiceCircuitBreaker = new DefaultCircuitBreaker(quickService, 3000, 2,
2000 * 1000 * 1000);
//Create an object of monitoring service which makes both local and remote calls
var monitoringService = new MonitoringService(delayedServiceCircuitBreaker,
quickServiceCircuitBreaker);
//Fetch response from local resource
LOGGER.info(monitoringService.localResourceResponse());
//Fetch response from delayed service 2 times, to meet the failure threshold
LOGGER.info(monitoringService.delayedServiceResponse());
LOGGER.info(monitoringService.delayedServiceResponse());
//Fetch current state of delayed service circuit breaker after crossing failure threshold limit
//which is OPEN now
LOGGER.info(delayedServiceCircuitBreaker.getState());
//Meanwhile, the delayed service is down, fetch response from the healthy quick service
LOGGER.info(monitoringService.quickServiceResponse());
LOGGER.info(quickServiceCircuitBreaker.getState());
//Wait for the delayed service to become responsive
try {
Thread.sleep(5000);
} catch (InterruptedException e) {
e.printStackTrace();
}
//Check the state of delayed circuit breaker, should be HALF_OPEN
LOGGER.info(delayedServiceCircuitBreaker.getState());
//Fetch response from delayed service, which should be healthy by now
LOGGER.info(monitoringService.delayedServiceResponse());
//As successful response is fetched, it should be CLOSED again.
LOGGER.info(delayedServiceCircuitBreaker.getState());
}
}
The monitoring service:
public class MonitoringService {
private final CircuitBreaker delayedService;
private final CircuitBreaker quickService;
public MonitoringService(CircuitBreaker delayedService, CircuitBreaker quickService) {
this.delayedService = delayedService;
this.quickService = quickService;
}
//Assumption: Local service won't fail, no need to wrap it in a circuit breaker logic
public String localResourceResponse() {
return "Local Service is working";
}
/**
* Fetch response from the delayed service (with some simulated startup time).
*
* @return response string
*/
public String delayedServiceResponse() {
try {
return this.delayedService.attemptRequest();
} catch (RemoteServiceException e) {
return e.getMessage();
}
}
/**
* Fetches response from a healthy service without any failure.
*
* @return response string
*/
public String quickServiceResponse() {
try {
return this.quickService.attemptRequest();
} catch (RemoteServiceException e) {
return e.getMessage();
}
}
}
As it can be seen, it does the call to get local resources directly, but it wraps the call to remote (costly) service in a circuit breaker object, which prevents faults as follows:
public class DefaultCircuitBreaker implements CircuitBreaker {
private final long timeout;
private final long retryTimePeriod;
private final RemoteService service;
long lastFailureTime;
int failureCount;
private final int failureThreshold;
private State state;
private final long futureTime = 1000 * 1000 * 1000 * 1000;
/**
* Constructor to create an instance of Circuit Breaker.
*
* @param timeout Timeout for the API request. Not necessary for this simple example
* @param failureThreshold Number of failures we receive from the depended service before changing
* state to 'OPEN'
* @param retryTimePeriod Time period after which a new request is made to remote service for
* status check.
*/
DefaultCircuitBreaker(RemoteService serviceToCall, long timeout, int failureThreshold,
long retryTimePeriod) {
this.service = serviceToCall;
// We start in a closed state hoping that everything is fine
this.state = State.CLOSED;
this.failureThreshold = failureThreshold;
// Timeout for the API request.
// Used to break the calls made to remote resource if it exceeds the limit
this.timeout = timeout;
this.retryTimePeriod = retryTimePeriod;
//An absurd amount of time in future which basically indicates the last failure never happened
this.lastFailureTime = System.nanoTime() + futureTime;
this.failureCount = 0;
}
//Reset everything to defaults
@Override
public void recordSuccess() {
this.failureCount = 0;
this.lastFailureTime = System.nanoTime() + futureTime;
this.state = State.CLOSED;
}
@Override
public void recordFailure() {
failureCount = failureCount + 1;
this.lastFailureTime = System.nanoTime();
}
//Evaluate the current state based on failureThreshold, failureCount and lastFailureTime.
protected void evaluateState() {
if (failureCount >= failureThreshold) { //Then something is wrong with remote service
if ((System.nanoTime() - lastFailureTime) > retryTimePeriod) {
//We have waited long enough and should try checking if service is up
state = State.HALF_OPEN;
} else {
//Service would still probably be down
state = State.OPEN;
}
} else {
//Everything is working fine
state = State.CLOSED;
}
}
@Override
public String getState() {
evaluateState();
return state.name();
}
/**
* Break the circuit beforehand if it is known service is down Or connect the circuit manually if
* service comes online before expected.
*
* @param state State at which circuit is in
*/
@Override
public void setState(State state) {
this.state = state;
switch (state) {
case OPEN:
this.failureCount = failureThreshold;
this.lastFailureTime = System.nanoTime();
break;
case HALF_OPEN:
this.failureCount = failureThreshold;
this.lastFailureTime = System.nanoTime() - retryTimePeriod;
break;
default:
this.failureCount = 0;
}
}
/**
* Executes service call.
*
* @return Value from the remote resource, stale response or a custom exception
*/
@Override
public String attemptRequest() throws RemoteServiceException {
evaluateState();
if (state == State.OPEN) {
// return cached response if no the circuit is in OPEN state
return "This is stale response from API";
} else {
// Make the API request if the circuit is not OPEN
try {
//In a real application, this would be run in a thread and the timeout
//parameter of the circuit breaker would be utilized to know if service
//is working. Here, we simulate that based on server response itself
var response = service.call();
// Yay!! the API responded fine. Let's reset everything.
recordSuccess();
return response;
} catch (RemoteServiceException ex) {
recordFailure();
throw ex;
}
}
}
}

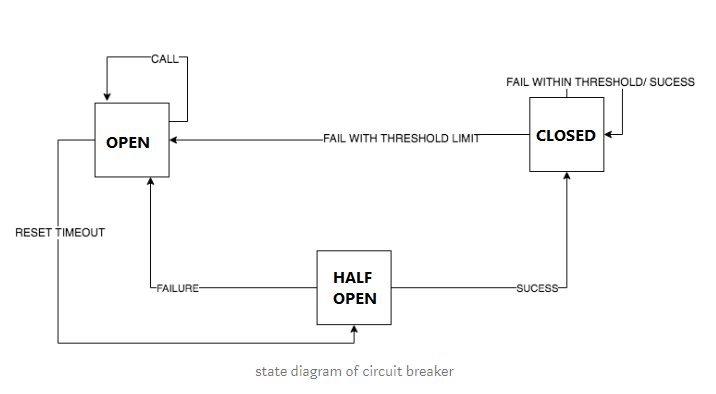

How does the above pattern prevent failures? Let's understand via this finite state machine implemented by it.
- We initialize the Circuit Breaker object with certain parameters:
timeout,failureThresholdandretryTimePeriodwhich help determine how resilient the API is. - Initially, we are in the
closedstate and nos remote calls to the API have occurred. - Every time the call succeeds, we reset the state to as it was in the beginning.
- If the number of failures cross a certain threshold, we move to the
openstate, which acts just like an open circuit and prevents remote service calls from being made, thus saving resources. (Here, we return the response calledstale response from API) - Once we exceed the retry timeout period, we move to the
half-openstate and make another call to the remote service again to check if the service is working so that we can serve fresh content. A failure sets it back toopenstate and another attempt is made after retry timeout period, while a success sets it toclosedstate so that everything starts working normally again.
Class diagram
Applicability
Use the Circuit Breaker pattern when
- Building a fault-tolerant application where failure of some services shouldn't bring the entire application down.
- Building a continuously running (always-on) application, so that its components can be upgraded without shutting it down entirely.
