title: Command
category: Behavioral
language: en
tags:
- Gang of Four
## Also known as
Action, Transaction
## Intent
Encapsulate a request as an object, thereby letting you parameterize clients with different
requests, queue or log requests, and support undoable operations.
## Explanation
Real-world example
> There is a wizard casting spells on a goblin. The spells are executed on the goblin one by one.
> The first spell shrinks the goblin and the second makes him invisible. Then the wizard reverses
> the spells one by one. Each spell here is a command object that can be undone.
In plain words
> Storing requests as command objects allows performing an action or undoing it at a later time.
Wikipedia says
> In object-oriented programming, the command pattern is a behavioral design pattern in which an
> object is used to encapsulate all information needed to perform an action or trigger an event at
> a later time.
Programmatic Example
Here's the sample code with wizard and goblin. Let's start from the
## Applicability
Use the Command pattern when you want to:
* Parameterize objects by an action to perform. You can express such parameterization in a
procedural language with a callback function, that is, a function that's registered somewhere to be
called at a later point. Commands are an object-oriented replacement for callbacks.
* Specify, queue, and execute requests at different times. A Command object can have a life
independent of the original request. If the receiver of a request can be represented in an address
space-independent way, then you can transfer a command object for the request to a different process
and fulfill the request there.
* Support undo. The Command's execute operation can store state for reversing its effects in the
command itself. The Command interface must have an added un-execute operation that reverses the
effects of a previous call to execute. The executed commands are stored in a history list.
Unlimited-level undo and redo functionality is achieved by traversing this list backward and forward
calling un-execute and execute, respectively.
* Support logging changes so that they can be reapplied in case of a system crash. By augmenting the
Command interface with load and store operations, you can keep a persistent log of changes.
Recovering from a crash involves reloading logged commands from the disk and re-executing them with
the execute operation.
* Structure a system around high-level operations build on primitive operations. Such a structure is
common in information systems that support transactions. A transaction encapsulates a set of data
changes. The Command pattern offers a way to model transactions. Commands have a common interface,
letting you invoke all transactions the same way. The pattern also makes it easy to extend the
system with new transactions.
* Keep a history of requests.
* Implement callback functionality.
* Implement the undo functionality.
## Known uses
* java.lang.Runnable
* org.junit.runners.model.Statement
* Netflix Hystrix
* javax.swing.Action
## Credits
* Design Patterns: Elements of Reusable Object-Oriented Software
* Head First Design Patterns: A Brain-Friendly Guide
* Refactoring to Patterns
* J2EE Design Patterns
Wizard class.
java @Slf4j public class Wizard { private final Deque<Command> undoStack = new LinkedList<>(); private final Deque<Command> redoStack = new LinkedList<>(); public Wizard() {} public void castSpell(Runnable runnable) { runnable.run(); undoStack.offerLast(runnable); } public void undoLastSpell() { if (!undoStack.isEmpty()) { var previousSpell = undoStack.pollLast(); redoStack.offerLast(previousSpell); previousSpell.run(); } } public void redoLastSpell() { if (!redoStack.isEmpty()) { var previousSpell = redoStack.pollLast(); undoStack.offerLast(previousSpell); previousSpell.run(); } } @Override public String toString() { return "Wizard"; } }
Next, we have the goblin who's the target of the spells.
java @Slf4j public abstract class Target { private Size size; private Visibility visibility; public Size getSize() { return size; } public void setSize(Size size) { this.size = size; } public Visibility getVisibility() { return visibility; } public void setVisibility(Visibility visibility) { this.visibility = visibility; } @Override public abstract String toString(); public void printStatus() { LOGGER.info("{}, [size={}] [visibility={}]", this, getSize(), getVisibility()); } } public class Goblin extends Target { public Goblin() { setSize(Size.NORMAL); setVisibility(Visibility.VISIBLE); } @Override public String toString() { return "Goblin"; } public void changeSize() { var oldSize = getSize() == Size.NORMAL ? Size.SMALL : Size.NORMAL; setSize(oldSize); } public void changeVisibility() { var visible = getVisibility() == Visibility.INVISIBLE ? Visibility.VISIBLE : Visibility.INVISIBLE; setVisibility(visible); } }
Finally, we have the wizard in the main function casting spells.
java public static void main(String[] args) { var wizard = new Wizard(); var goblin = new Goblin(); // casts shrink/unshrink spell wizard.castSpell(goblin::changeSize); // casts visible/invisible spell wizard.castSpell(goblin::changeVisibility); // undo and redo casts wizard.undoLastSpell(); wizard.redoLastSpell();
Here's the whole example in action.
java var wizard = new Wizard(); var goblin = new Goblin(); goblin.printStatus(); wizard.castSpell(goblin::changeSize); goblin.printStatus(); wizard.castSpell(goblin::changeVisibility); goblin.printStatus(); wizard.undoLastSpell(); goblin.printStatus(); wizard.undoLastSpell(); goblin.printStatus(); wizard.redoLastSpell(); goblin.printStatus(); wizard.redoLastSpell(); goblin.printStatus();
Here's the program output:
java Goblin, [size=normal] [visibility=visible] Goblin, [size=small] [visibility=visible] Goblin, [size=small] [visibility=invisible] Goblin, [size=small] [visibility=visible] Goblin, [size=normal] [visibility=visible] Goblin, [size=small] [visibility=visible] Goblin, [size=small] [visibility=invisible]

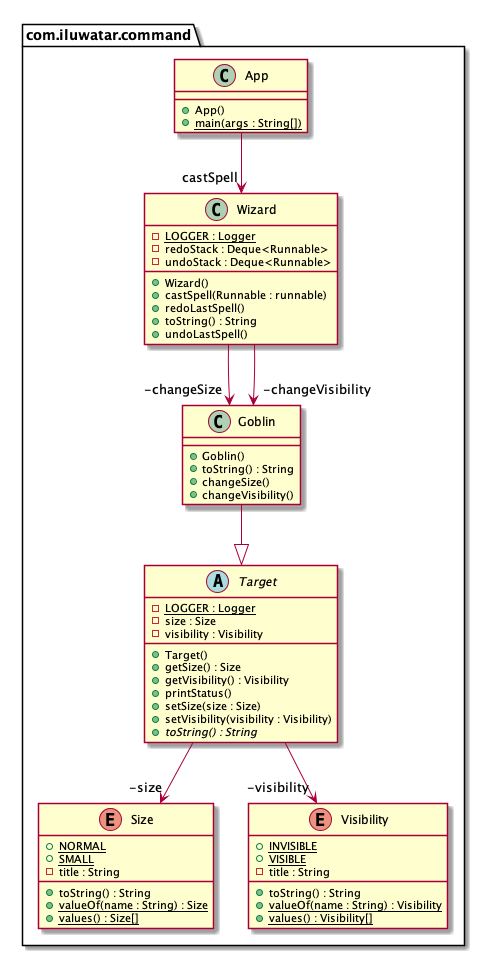

## Class diagram
## Applicability
Use the Command pattern when you want to:
* Parameterize objects by an action to perform. You can express such parameterization in a
procedural language with a callback function, that is, a function that's registered somewhere to be
called at a later point. Commands are an object-oriented replacement for callbacks.
* Specify, queue, and execute requests at different times. A Command object can have a life
independent of the original request. If the receiver of a request can be represented in an address
space-independent way, then you can transfer a command object for the request to a different process
and fulfill the request there.
* Support undo. The Command's execute operation can store state for reversing its effects in the
command itself. The Command interface must have an added un-execute operation that reverses the
effects of a previous call to execute. The executed commands are stored in a history list.
Unlimited-level undo and redo functionality is achieved by traversing this list backward and forward
calling un-execute and execute, respectively.
* Support logging changes so that they can be reapplied in case of a system crash. By augmenting the
Command interface with load and store operations, you can keep a persistent log of changes.
Recovering from a crash involves reloading logged commands from the disk and re-executing them with
the execute operation.
* Structure a system around high-level operations build on primitive operations. Such a structure is
common in information systems that support transactions. A transaction encapsulates a set of data
changes. The Command pattern offers a way to model transactions. Commands have a common interface,
letting you invoke all transactions the same way. The pattern also makes it easy to extend the
system with new transactions.
* Keep a history of requests.
* Implement callback functionality.
* Implement the undo functionality.
## Known uses
* java.lang.Runnable
* org.junit.runners.model.Statement
* Netflix Hystrix
* javax.swing.Action
## Credits
* Design Patterns: Elements of Reusable Object-Oriented Software
* Head First Design Patterns: A Brain-Friendly Guide
* Refactoring to Patterns
* J2EE Design Patterns
