Most notably, this PR:
- changes the traits (and assembly format) of addptr so it can handle offsets that have arbitrary integer width.
- adds support for `cat`
1. Add missing barriers and revert the previous temporary solution
2. Extract the `run` method from membar analysis because the membar
analysis should have two phases, including construction, which doesn't
modify any IR, and modification, which adds barrier IRs. Hope this could
make the use of membar clear.
1. Improve pipline's comment
2. Decompose insert_slice_async when load vector size is not supported
3. Add a test that could fail our gemm code
Copy my comments here:
There's a knob that may cause performance regression when decomposition
has been performed. We should remove this knob once we have thorough
analysis on async wait. Currently, we decompose `insert_slice_async`
into `load` and `insert_slice` without knowing which `async_wait` is
responsible for the `insert_slice_async`. To guarantee correctness, we
blindly set the `async_wait` to wait for all async ops if any `insert_slice_async` has been decomposed.
There are two options to improve this:
1. We can perform a dataflow analysis to find the `async_wait` that is
responsible for the `insert_slice_async` in the backend.
4. We can modify the pipeline to perform the decomposition before the
`async_wait` is inserted. However, it is also risky because we don't
know the correct vectorized shape yet in the pipeline pass. Making the
pipeline pass aware of the vectorization could introduce additional
dependencies on the AxisInfoAnalysis and the Coalesce analysis.
`insert_slice_async` is decomposed into `load + insert_slice` in the
backend.
Not sure if V100 perf can match the master branch though in this way.
Maybe the performance can be improved if instructions are arranged in
the following form:
```
%0 = load
%1 = load
%2 = load
...
insert_slice %0
insert_slice %1
insert_slice %2
```
Tested on A100 when manually enabling this decomposition.
Tests on V100 haven't been integrated yet, we can divide the tests into
two phases:
1. Test only load, insert_slice, and insert_slice_async, given TritonGPU
IRs in `test_backend.py`.
2. End to end gemm tests on V100.
Cross operation barriers are taken care of by the Membar pass.
Explicit barriers are only required if there's any synchronization
necessary within each operation.
A (potential) problem by directly adopting `tensor.extract_slice`.
Long story short, `tensor.extract_slice` is not aware of swizzling.

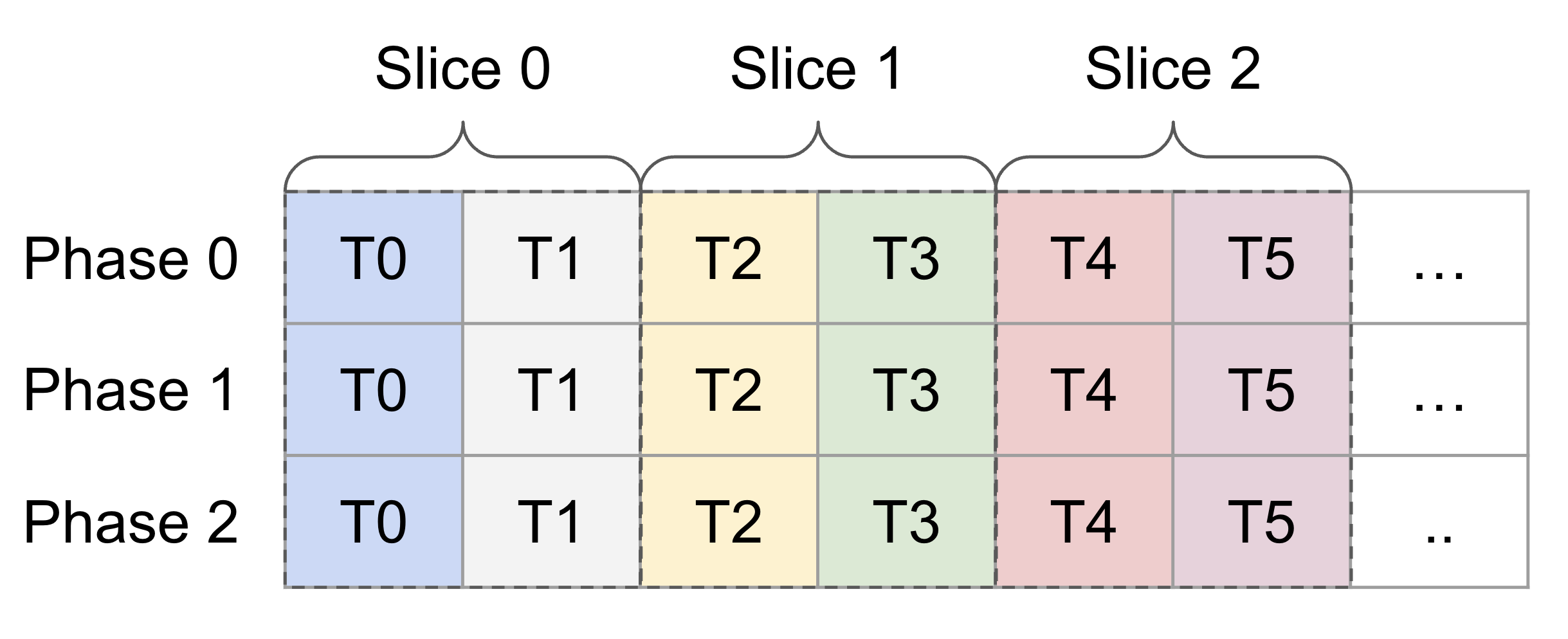

Consider the following shared memory tensor and its first three slices,
where each slice includes two tile (the loading unit of LDGSTS) of
elements. Currently, the tiles haven't been swizzled yet, so slicing
seems to work.
<img width="1219" alt="image"
src="https://user-images.githubusercontent.com/2306281/201833023-a7950705-2d50-4c0a-8527-7505261c3a3c.png">

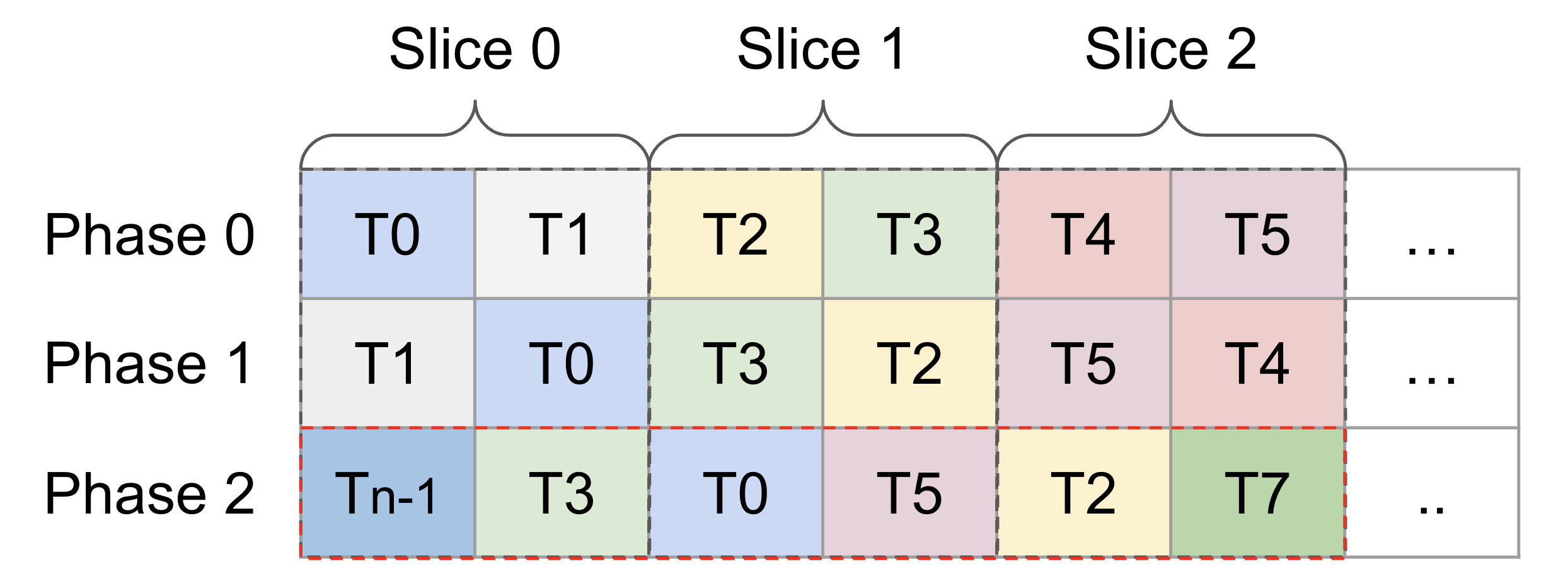

However, now consider the following figure, which is the layout after
applying swizzling on the first figure.
<img width="1244" alt="image"
src="https://user-images.githubusercontent.com/2306281/201834824-7daae360-f5bc-4e6b-a921-20be3f294b78.png">
Note that on phase 2, all tiles have been swizzled out of their
originally slices. This implies that if we use the tile index after
slicing, we can no longer locate the correct tiles. For example, T3 was
in slice 1 but got swapped to slice 0 after swizzling.
Here's a more detailed explanation. In the current `triton-mlir` branch,
we only compute the relative offset of each tile. So T3's index in Slice
1 is *1*, and it will be swizzled using *1* and *phase id*. Whereas the
correct index of T3 should be *3*, which is the relative offset to the
beginning of the shared memory tensor being swizzled, and T3 should be
swizzled using *3* and *phase id*.
This PR proposes a hacky solution for this problem. We restore the
"correct" offset of each tile by **assuming that slicing on a specific
dim only happens at most once on the output of insert_slice_async**. I
admit it's risky and fragile.

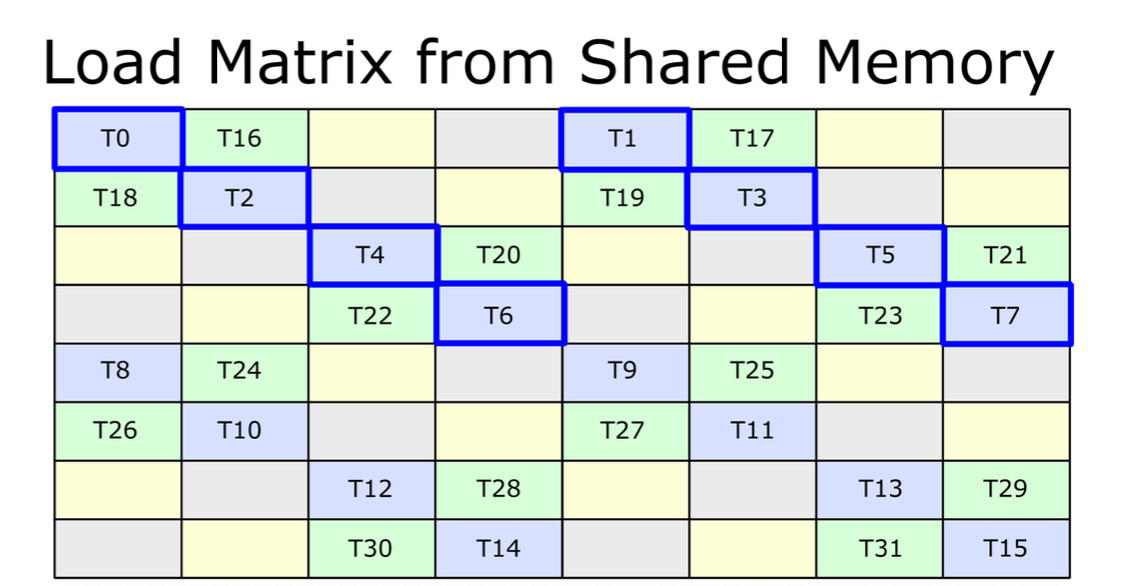

The other possible solution is adopting cutlass' swizzling logic that
limits the indices being swizzled in a "bounding box" that matches the
mma instruction executes. For example, in the following tensor layout,
each 4x4 submatrix is a minimum swizzling unit, and the entire tensor
represents the tensor layout of operand A in `mma.16816`.
<img width="565" alt="image"
src="https://user-images.githubusercontent.com/2306281/201836879-4ca7824b-530c-4a06-a3d5-1e74a2de1b42.png">
Co-authored-by: Phil Tillet <phil@openai.com>
Swizzling is no longer implemented as a separate pass. It is instead
done in a specialized constructor of SharedEncodingAttr, and tested via
google tests instead of triton-opt + filecheck.
In the future we may want to implement it as a pass again once we have
an additional dialect between TritonGPU and LLVM.
## Features
- Allow taking a block of tensor slice, as long as each dimension is
contiguous (unit stride).
- Fix some problems in `insert_slice_async`'s semantic.
- More general verification for ops that return shared layout encoding.
## Known Limitations
- `insert_slice_async` still uses the old semantic. May submit another
PR later to support similar semantic like `tensor.extract_slice`.
- No encoding verification for `tensor.extract_slice`.
- 3d tensor ops are broken.
- Strided accesses are not allowed.
- May cause a little performance slowdown since we are passing strides
as values but not constants (e.g., int).
It would be difficult to pass strides as attributes when we have control
flows. A block argument is possible to accept tensors with different
strides.
1. Rewrite code generation of insert_slice_async.
2. Correct the wrong index passed to extract_slice in pipeline.
3. Add a prologue in pipeline to wait for dangling cp.asyncs.
4. Move scf to cf conversion inside TritonGPUToLLVM because we need to
perform membar before scf to cf. It shouldn't be a technical limitation
and could be improved by a more general membar analysis.
5. Use an attribute to memoize the shared memory size and support
dynamic shared memory.
6. Prevent the combine pass to reorder insert_slice and extract_slice
across async_wait
Co-authored-by: Superjomn <yanchunwei@outlook.com>
This PR helps to
1. Adapt the existing DotOp conversion to the design of the new
DotOperand layout,
2. Making the DotOp conversion work with both shared-layout inputs case
and dotoperand-layout inputs case for further upstream switch.
This PR does the following:
- CUDA utilities (e.g., cuGetInfo) won't be compiled as part of libtriton.so anymore.
- Refactoring driver/llvm.cc to split it between PTX codegen and python.
- By extension this will also deprecate include/external so Triton won't have to live with a copy of some CUDA/Hip headers anymore.
- `triton-translate` becomes a `triton.tools.aot` Python utility that re-uses functions from the triton.compile sub-module.
